Transmission Voltages under 100kV

This map shows transmission lines across the U.S. with voltages under 100kV. All transmission lines are shown as faint gray lines, with the <100kV lines bolded. State color corresponds to the total length of <100kV transmission within that state. Individual state lengths are plotted in the bar chart below.

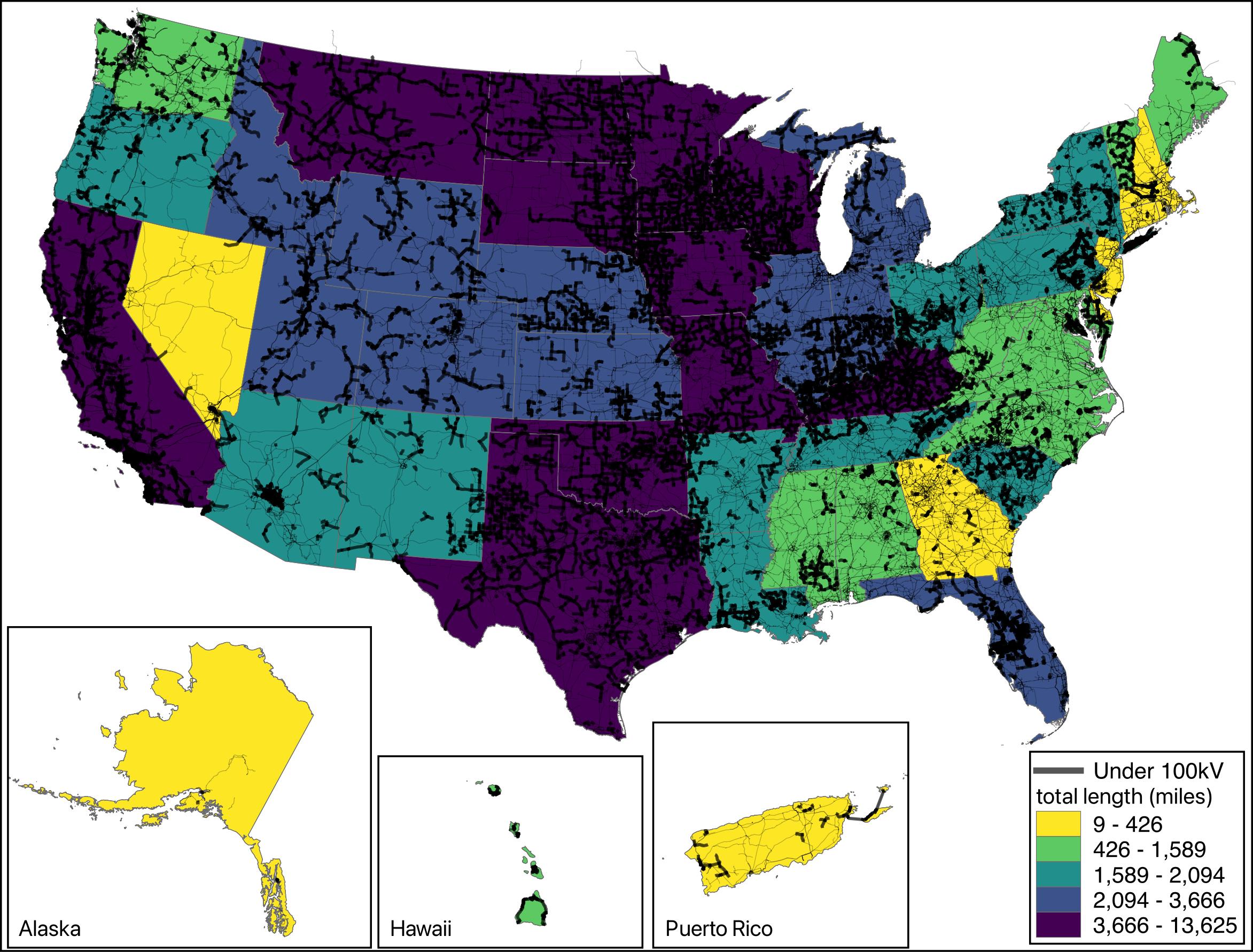

U.S map with states colored to indicate transmission voltages under 100kV by state

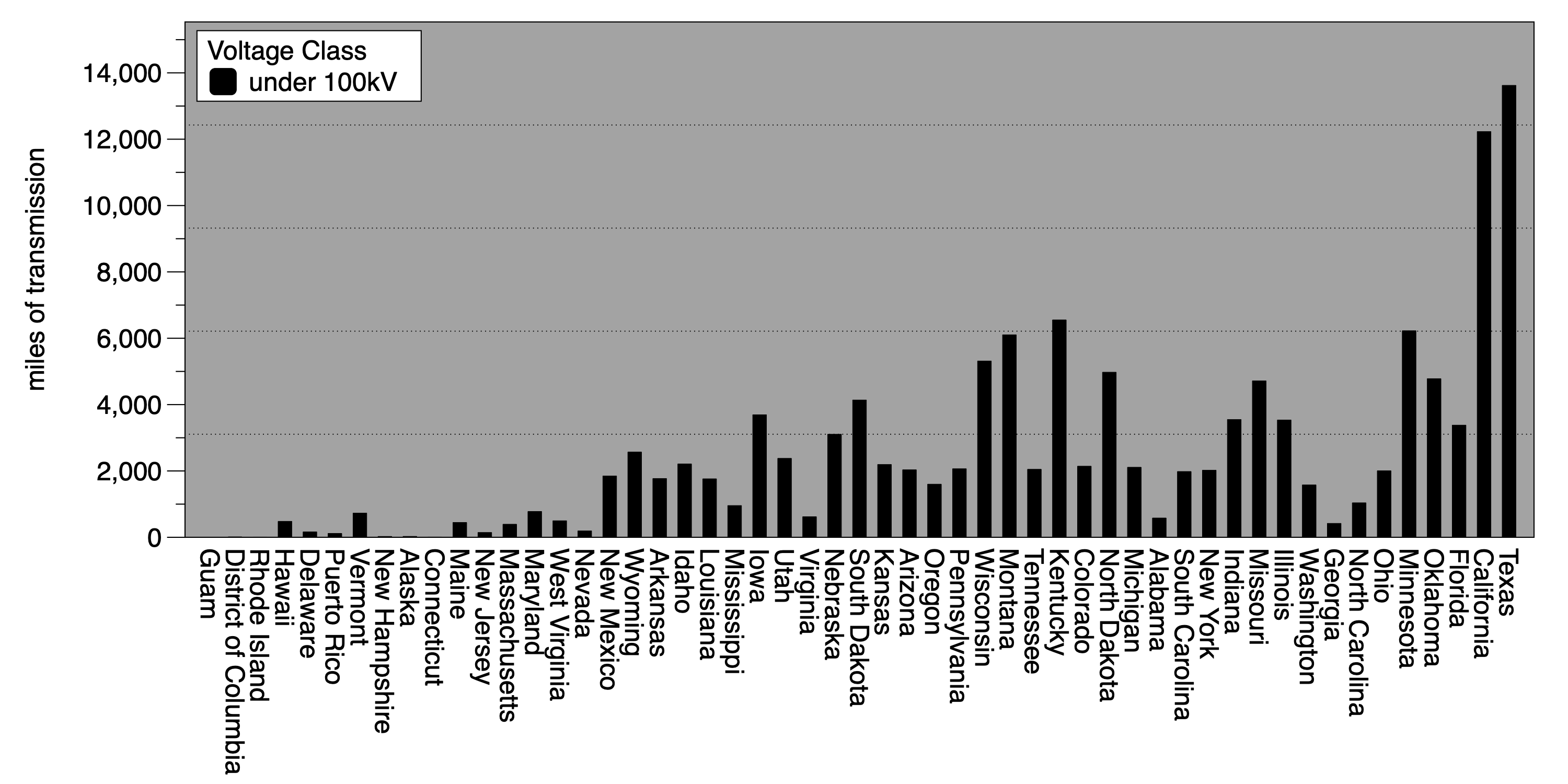

bar chart graph displaying transmission lengths for voltages under 100kV lengths by U.S. state
