Transmission Voltages Between 100-161kV

This map shows transmission lines across the U.S. with voltages between 100-161kV. All transmission lines are shown as faint gray lines, with the 100-161 kV lines bolded. State color corresponds to the total length of 100-161 kV transmission within that state. Individual state lengths are plotted in the bar chart below.

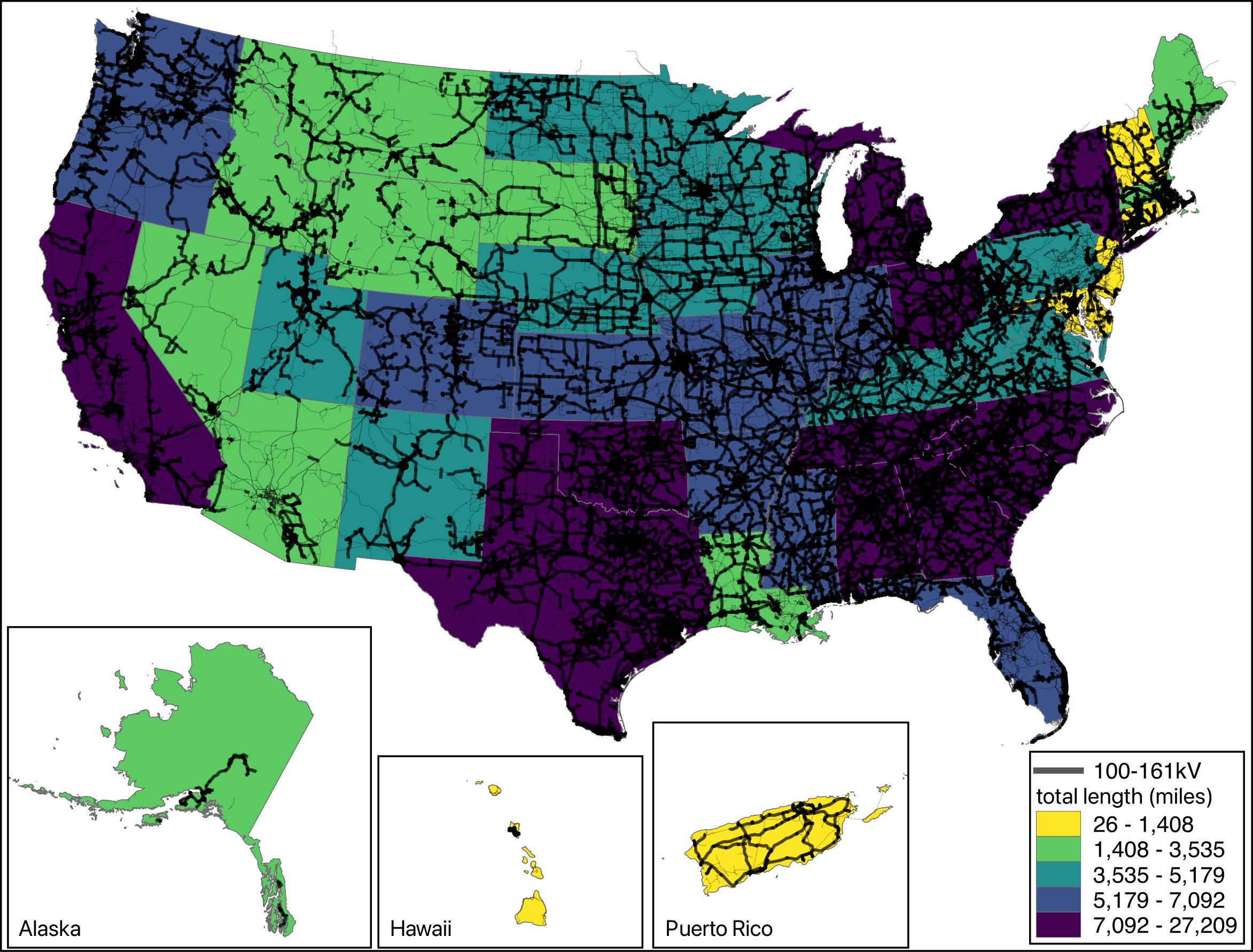

U.S. map with states colored to indicate transmission voltages between 100-161kV by state

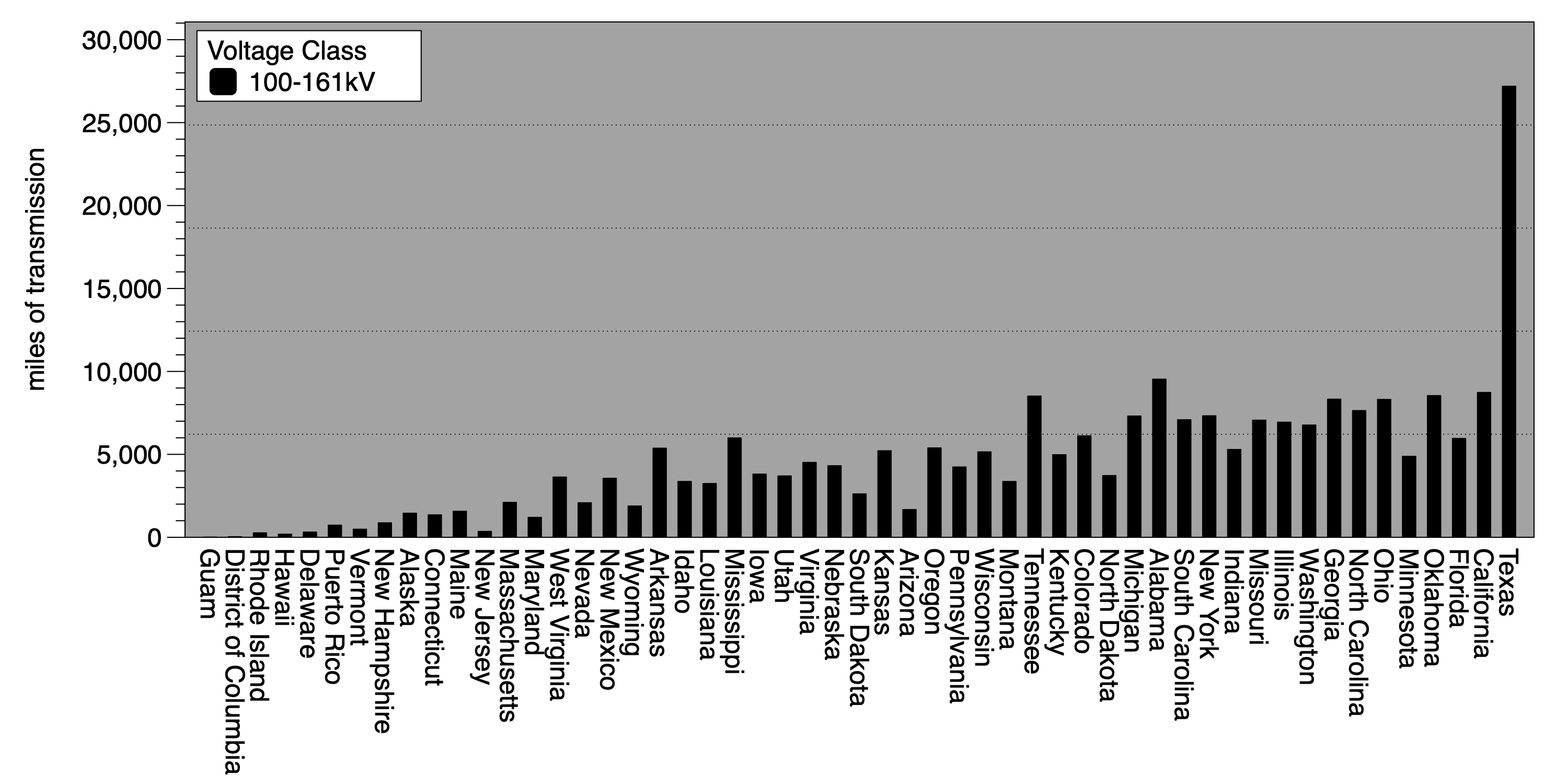

bar chart graph displaying transmission lengths for 100-161kV voltages by U.S. state
