Direct Transmission Line by State

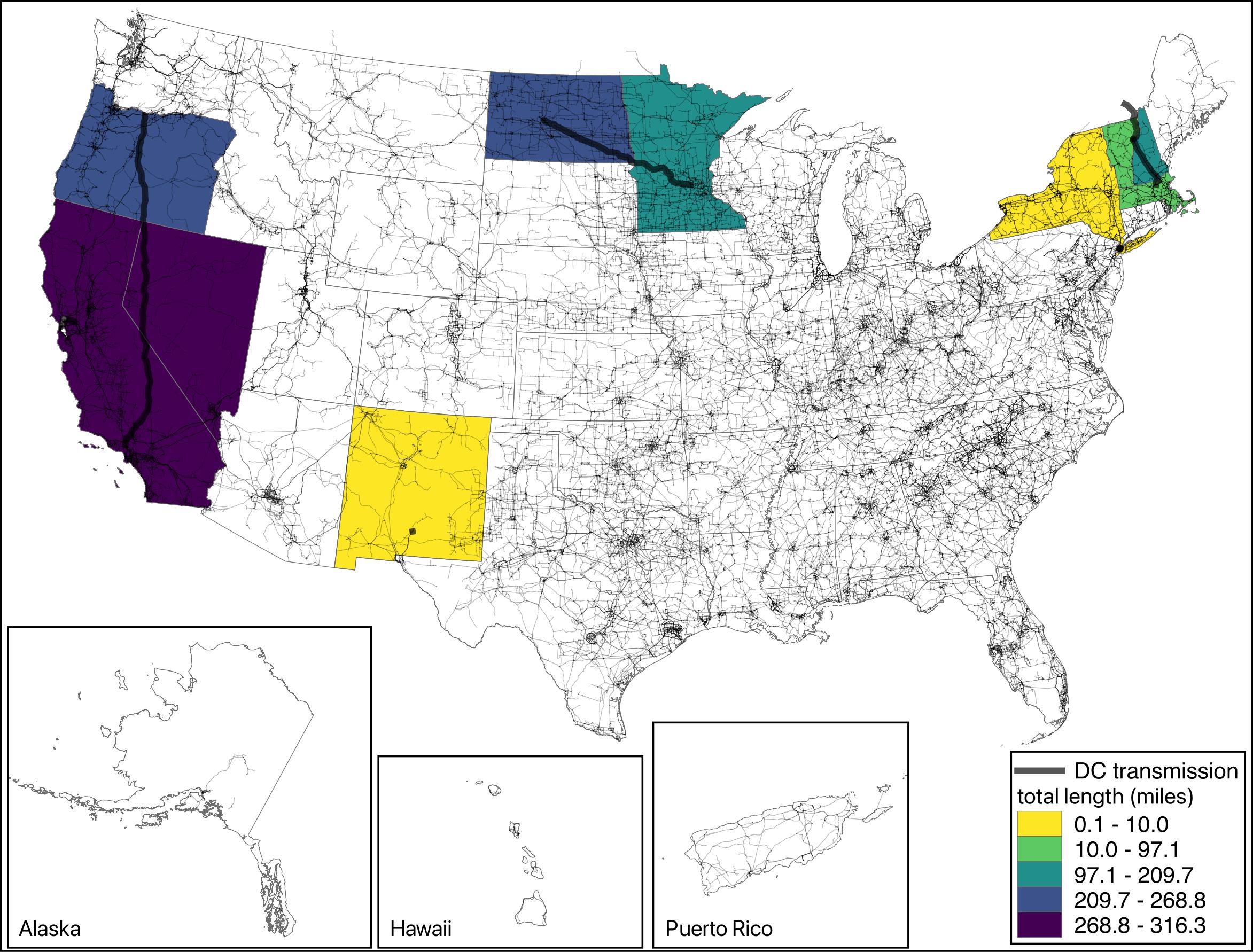

This map shows DC (direct current) transmission lines within the U.S. All transmission lines are shown as faint gray lines, with the DC lines bolded. States without a color do not have DC transmission lines within their border, with the state color corresponding to the total length of DC transmission within that state. Individual state lengths are plotted in the bar chart below.

Map of the U.S. with select states colored reflecting direct current transmissions by state. All transmission lines are shown as faint gray lines, with the DC lines bolded.

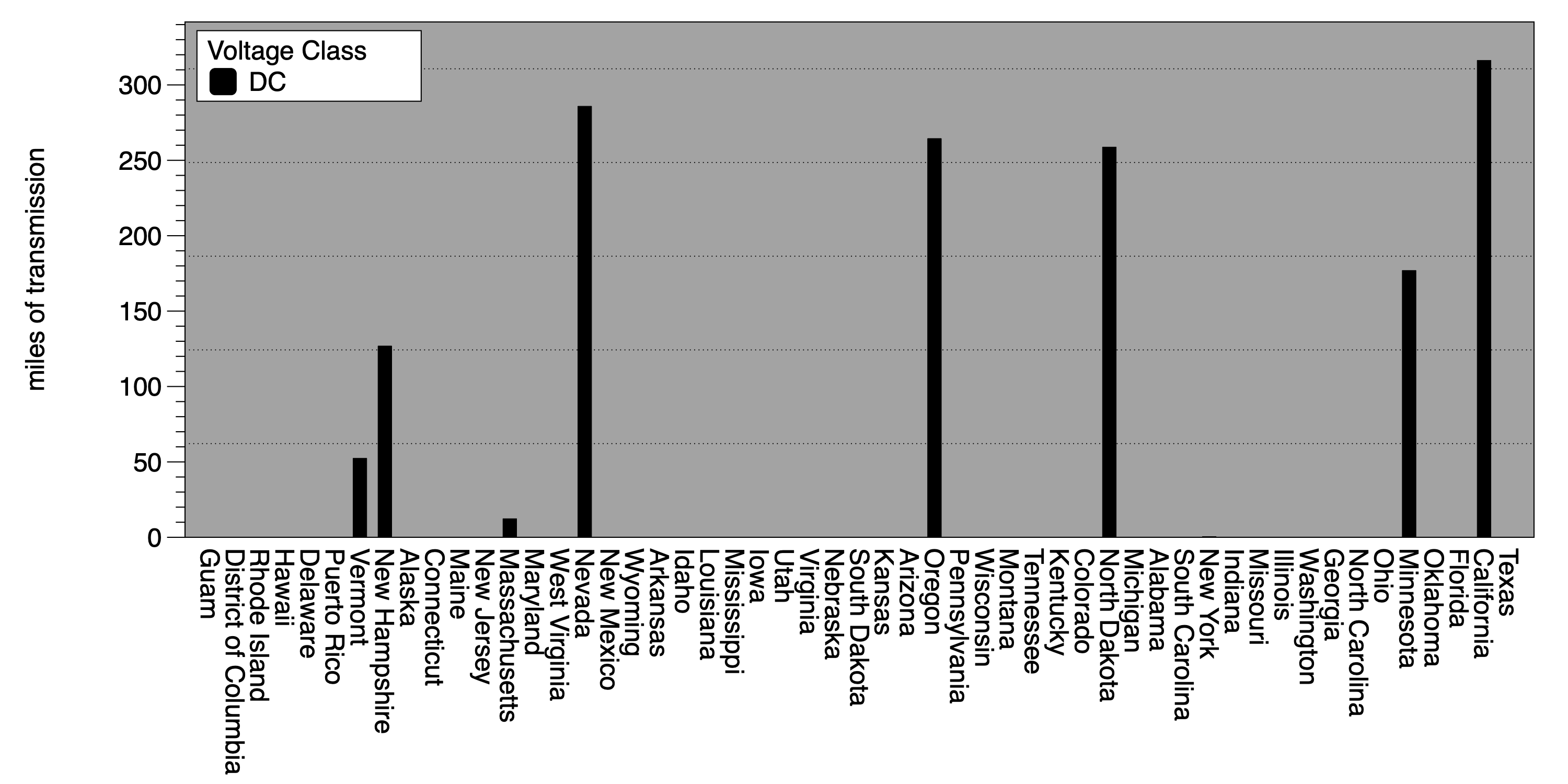

bar chart graph displaying direct current transmission lengths by U.S. state
