The Science

Most streams stop flowing for parts of the year, but their channel shape still controls where water will move and how materials are transformed and transported when flow returns. The challenge is getting accurate, high-resolution maps of small, tree-lined channels without expensive survey gear. A multi-institutional team of researchers compared four low-cost ways to build 3D streambed maps for a ~200 m dry headwater reach: a) drone photos processed with Structure-from-Motion (SfM), a method that builds 3D shape from overlapping images), b & c) two machine-learning reconstructions from the same photos, and d) smartphone LiDAR (Light Detection and Ranging, a laser-based distance sensor). The SfM approach best matched direct field measurements, with typical elevation errors around 0.04 m and horizontal errors near 1–2 m. The other methods showed larger position shifts and larger elevation errors, reducing reliability for fine-scale channel features.

The Impact

Reliable streambed maps are often the limiting step for estimating flow depth and speed, which then affects calculations of reach-scale hydrologic details and biogeochemical function. This study shows that a recreation-grade drone workflow can produce near–survey-grade cross sections in a small, non-perennial streambed channel even without real-time kinematic positioning or using ground control points to calibrate the reconstruction. That combination—low-altitude imaging plus standard SfM processing—was distinct from many prior high-accuracy workflows that depend on more specialized positioning equipment. By also translating geometric errors into uncertainty ranges for water depth, velocity, nitrate uptake velocity, and reaeration, the work gave the researchers a practical way to judge whether a reconstruction is “good enough” for hydrologic and biogeochemical process inference. The results also highlighted current limits of off-the-shelf machine learning-based 3D reconstructions and smartphone LiDAR for long, narrow stream corridors, pointing to where computer vision and field hydro-biogeochemistry work best together. DOE priorities can be advanced with such methods to predict water availability, water quality (e.g., temperature), and reactive potential of river corridors.

Summary

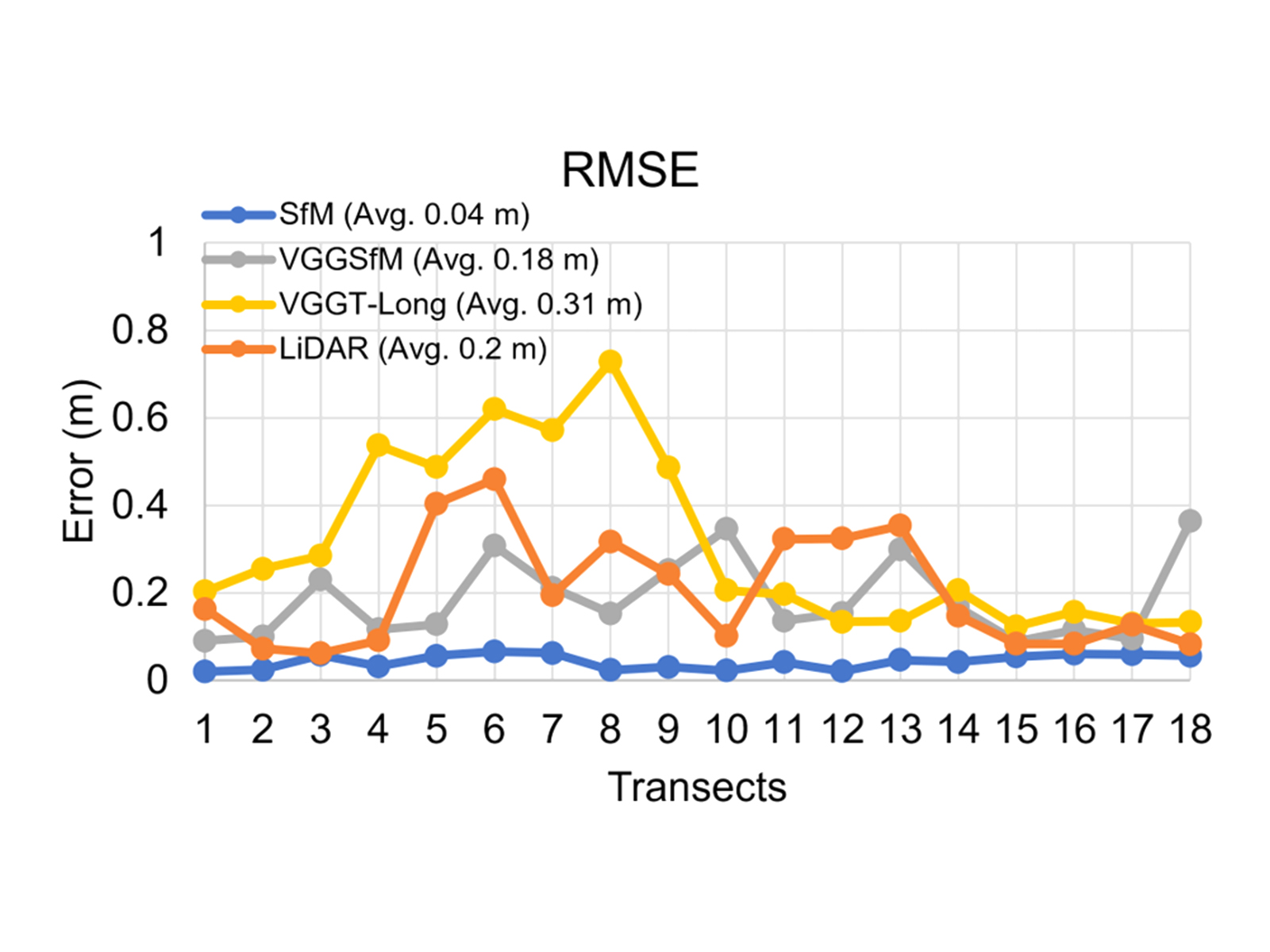

Researchers surveyed a ~200 m dry segment of a non-perennial stream using four cost-effective 3D mapping approaches and compared them to ground-truth transects measured with a tripod optical level and GPS-located ground control points (GCPs). Drone imagery processed with OpenDroneMap Structure from Motion (SfM) produced the closest match to field measurements, with mean transect root-mean-square error (RMSE) near 0.04 m and average transect bias near 0.02 m. The SfM mean horizontal mismatch to GPS-marked GCPs was about 1.6 m, consistent with consumer GPS uncertainty. The two learning-based reconstructions reduced processing time, but showed much larger horizontal offsets (about 5.9–8.7 m) and higher vertical RMSE (about 0.18–0.31 m). Smartphone LiDAR scanning was fast in the field, but accumulated drift along the reach, and ultimately yielding meter-scale horizontal error and ~0.20 m average transect RMSE. To connect mapping accuracy to stream function, the team propagated these geometric differences into simple open-channel calculations across flow rates from 0.01 to 3 m³/s. SfM-based topography kept relative errors modest for estimated depth and velocity (generally within about ±10%), and limited downstream uncertainty in nitrate uptake velocity and reaeration compared with the other methods. All of the other methods introduced substantially broader error ranges.

Contact

Jie Bao, Pacific Northwest National Laboratory, Jie.Bao@pnnl.gov

James Stegen, River Corridor SFA principal investigator, Pacific Northwest National Laboratory, james.stegen@pnnl.gov

Funding

This research was supported by the Department of Energy, Office of Science, Office of Biological and Environmental Research, Environmental System Science Program. This contribution originates from the River Corridor Scientific Focus Area project at the Pacific Northwest National Laboratory. PNNL is operated by Battelle Memorial Institute for the Department of Energy.

Related Link

Data are available at: https://data.ess-dive.lbl.gov/view/doi:10.15485/2589885
