December 6, 2016
Feature

How the Wind Blows

Researchers leverage a popular weather model to better forecast the wind and its clean energy potential

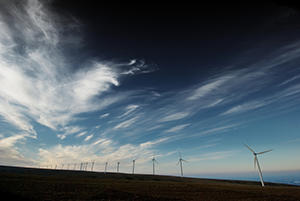

12_06_16_wind

The intermittency of wind energy has long plagued the power source from achieving greater integration with the electrical grid. While we can’t control when the wind blows, we can certainly get better at predicting it.

But wind forecasting is not just being able to predict when it will blow and when it won’t. Wind forecasting involves calculating how much energy will be produced, and a lot of factors—such as speed, direction, shear, and duration—go into assessing the energy output of an upcoming wind event.

For wind farm operators, the accuracy of forecasts is critical. If forecasts are off, wind farm operators lose money by either not delivering the power they promised (forecast winds didn’t materialize) or producing more energy than the power grid can accept (forecast winds were stronger than anticipated).

To maximize production, wind farm operators rely heavily on forecasting models and simulations that take into account fine-resolution variables. The accuracy and sensitivity of these models directly affect wind energy production, essentially telling operators how much energy could be produced under certain conditions.

Wind speeds, however, vary wildly at the height of turbines, often changing multiple times within an hour, making it difficult to forecast energy outputs. In addition, wind farms are often placed in areas of complex terrain, where hills and valleys channel the wind and make it more turbulent, adding another layer of complexity to predicting wind speeds.

As part of DOE’s Wind Forecasting Improvement Project(Offsite link), PNNL lead a team of scientists that included researchers from Nanjing University and Lawrence Livermore National Laboratory to study the effect of different variables in forecasting wind speed and power at turbine hub heights(Offsite link). Using a range of values as opposed to values that were previously viewed as constants, the team found depending on the variables chosen, wind power could range from 20 to 100 percent of the rated power during select time periods. In other words, the models are missing some key variables and wind farm operators could be missing out.

The PNNL lead team made the discovery by using formal Uncertainty Quantification techniques—a research method that attempts to determine the likelihood of an outcome when certain variables aren’t known—in conjunction with the Weather Research and Forecasting (WRF) model, a popular process and prediction meteorological model. The team investigated the WRF model response to changes in the values of specific constants and identified which model parameters have the largest influence on the simulated wind speed and potential wind power. To verify the accuracy of the model, they compared the simulation results to data collected in the spring as part of the DOE-supported Columbia Basin Wind Energy Study.

The next step is to extend the analysis to the summer, fall, and winter seasons and apply the techniques to alternate boundary-layer parameterizations commonly used in the WRF. The results of this work will help guide model development for continued improvement in tracking wind energy, the design of field studies, and, ultimately, better integration of wind energy into the power grid.

The results of the study can be read in the scientific journal Boundary-Layer Meteorology(Offsite link).

Download Publication

Key Capabilities

###

About PNNL

Pacific Northwest National Laboratory draws on its distinguishing strengths in chemistry, Earth sciences, biology and data science to advance scientific knowledge and address challenges in sustainable energy and national security. Founded in 1965, PNNL is operated by Battelle for the Department of Energy’s Office of Science, which is the single largest supporter of basic research in the physical sciences in the United States. DOE’s Office of Science is working to address some of the most pressing challenges of our time. For more information, visit https://energy.gov/science. For more information on PNNL, visit PNNL's News Center. Follow us on Twitter, Facebook, LinkedIn and Instagram.

Published: December 6, 2016

PNNL Research Team

Yun Quin, Larry K. Berg, Po-Lun Ma, Huiping Yan, Zhangshuan Hou, William J. Shaw
