On the Radar: Hot Spots for Serious Storms

Research validates satellite records that allow, for the first time, updated views of large storm systems around the world

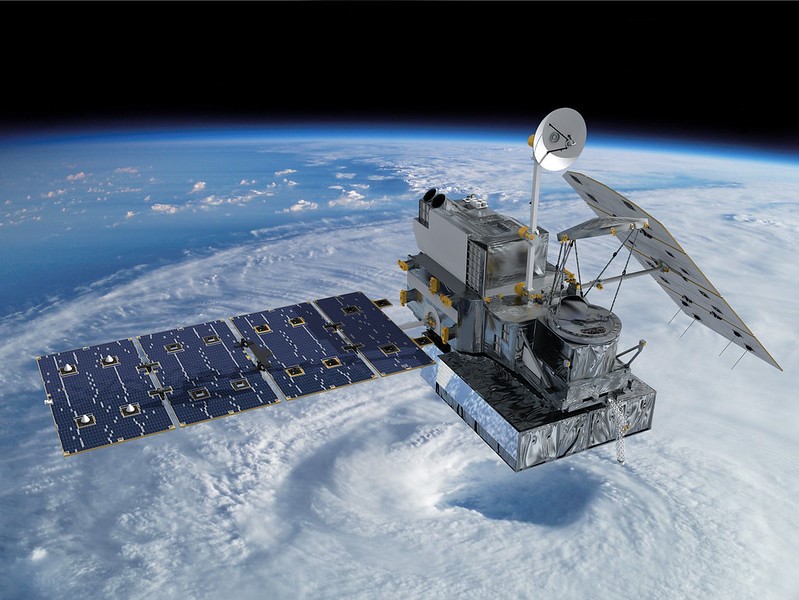

illustration of a satellite over the Earth

Cloud and precipitation characteristics observed by the GPM spaceborne radar allowed researchers to establish, for the first time, a global map of MCSs in mid- and high-latitude regions.

Image courtesy of Britt Griswold, NASA Goddard Space Flight Center

The Science

Large storm systems, or mesoscale convective systems (MCSs), play a key role in the global hydrological cycle and in modifying atmospheric circulation. But because of a lack of observational data over Earth’s mid- and high- latitudes, global distribution of MCSs has remained elusive. Now, researchers at the Department of Energy’s (DOE) Pacific Northwest National Laboratory and University of Washington have validated the capability of a three-dimensional cloud and precipitation radar on the Global Precipitation Measurement (GPM) satellite in capturing MCSs over these remote areas. With the GPM radar dataset, researchers were able to generate a global map of MCS distribution, which revealed several “hot spots” for MCS activity.

The Impact

Cloud and precipitation characteristics observed by the GPM spaceborne radar allowed researchers to establish, for the first time, a global map of MCSs in mid- and high-latitude regions. This comprehensive dataset will help researchers to study and monitor MCSs globally, especially in remote regions, and inform predictions of severe weather and climate.


As the largest form of deep convective storms, MCSs typically portend hazardous weather including heavy rain, hail, and strong winds. However, observations for understanding MCSs and predicting weather have been lacking over the remote mid- and high-latitude (beyond 30°) regions. The GPM core satellite, launched in 2014, scans a 400-kilometer swath from 65°S to 65°N every two to three hours, providing near-global coverage. Equipped with a dual-frequency precipitation radar, data obtained by this powerful observational platform has made it possible to establish the occurrence of MCSs globally. Researchers evaluated the accuracy and the detection capability of the GPM radar dataset using high-quality data from the geostationary satellite and Next-Generation Radar (NEXRAD) network, densely distributed over the continental United States. Over a 3-year period (2014-2016) of concurrent observations, more than 70 percent of GPM-detected extreme storms were confirmed as MCSs by the MCS tracking dataset over the continental United States. By applying the GPM-based MCS detection method to other regions, the researchers established a global map of the occurrence of MCSs.

PNNL Contacts

Jiwen Fan, Pacific Northwest National Laboratory,

L. Ruby Leung, Pacific Northwest National Laboratory,


The authors acknowledge the support of the Climate Model Development and Validation (CMDV) program of the Department of Energy's Climate and Environmental Sciences Division. J. Fan, Z. Feng, J. Wang, and J. Hardin were supported by the CMDV project at PNNL. R. Houze and S. Brodzik were supported by the Pacific Northwest National Laboratory (PNNL) subcontracts MA243766-TO358850 (CMDV) and MA243766-TO292896 (Water Cycle and Climate Extremes). This research used resources of the National Energy Research Scientific Computing Center (NERSC), a U.S. Department of Energy Office of Science User Facility operated under Contract No. DE-AC02-05CH11231. PNNL is operated for the U.S. Department of Energy (DOE) by Battelle Memorial Institute.

Published: August 5, 2020

Wang, J., R. Houze, J. Fan, S. Brodzik, Z. Feng, and J. Hardin, 2019: The detection of mesoscale convective systems by the GPM Ku-band spaceborne radar. J. Meteor. Soc. Japan, 97,
