December 13, 2021
Research Highlight

New Cloud Microphysics Improves the Simulation of Mesoscale Convective Systems

Reducing model bias in simulating mesoscale convective system precipitation by better representing cloud microphysics

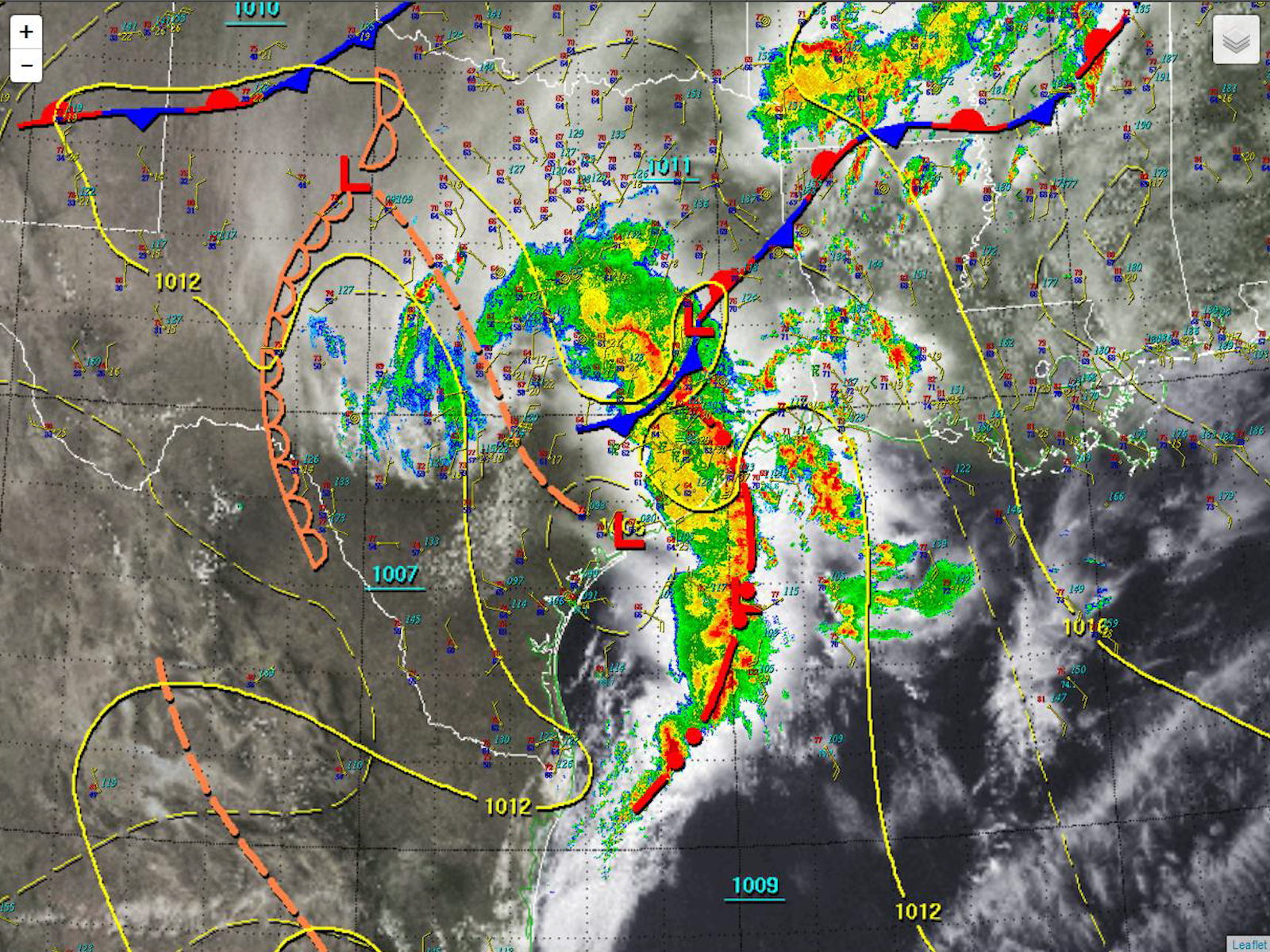

Weather satellite image of a thunderstorm over Texas

An impressive mesoscale convective system over eastern Texas with a comma-shaped configuration.

The Science

Mesoscale convective systems (MCSs) play an important role in regulating global radiation and the hydrological cycle. However, global climate models (GCMs) have had problems simulating MCSs. Cloud microphysics can affect MCS organization (e.g., through latent heating, cold pool, etc.) and is one of the most poorly represented types of physics in GCMs. Researchers found that improving the representations of cloud microphysics processes reduces model bias in simulating MCSs. Compared to the original microphysics scheme, the physically advanced ice microphysics in the new scheme improves the simulation of MCS precipitation and produces more realistic occurrences of heavy precipitation rates.

The Impact

These results provide a scientific justification for employing a more physical cloud microphysics scheme in future versions of the Energy Exascale Earth System Model (E3SM). The improved model performance demonstrates the importance of realistic approximation of ice microphysical processes. As GCM resolution continues to increase, more convective processes and clouds will be resolved. The role of cloud microphysics will continue to become more important for simulating MCSs.


MCSs are large storms that play an important role in regulating precipitation and climate globally. They are difficult to simulate in global climate models because of the inaccurate physics parameterizations and coarse resolution typical of GCMs. The regionally refined model (RRM) approach allows high-resolution regional simulations to be embedded in a coarse-resolution global model, enabling the simulation of MCSs. How models represent small-scale cloud microphysical processes affects their projections of MCS precipitation. A relatively new cloud microphysics scheme—Predicted Particle Properties (P3)—was modified and implemented into E3SM. Researchers examined how cloud microphysics parameterizations influence MCS simulations over the contiguous United States using the RRM framework. They showed that the P3 scheme notably improves the simulation of precipitation, particularly MCS precipitation. The improvement mainly stems from the improved ice microphysics representations in P3, which help produce more realistic heavy precipitation rates.

PNNL Contact

Jiwen Fan, Pacific Northwest National Laboratory,

Ruby Leung, Pacific Northwest National Laboratory,


We acknowledge the support of the Climate Model Development and Validation program and the E3SM Science Focus Area. J.F. acknowledges the support of Department of Energy (DOE) Early Career Research Program. Pacific Northwest National Laboratory is operated for DOE by Battelle Memorial Institute under Contract DE-AC05-76RL01830. Work at Lawrence Livermore National Laboratory (LLNL) was performed under the auspices of by LLNL under contract No. DE-AC52-07NA27344.

Published: December 13, 2021

Wang, J., Fan, J., Feng, Z., Zhang, K., et al. “Impact of a new cloud microphysics parameterization on the simulations of mesoscale convective systems in E3SM,” Journal of Advances in Modeling Earth Systems, 13, e2021MS002628, (2021). [DOI:10.1029/2021MS002628]
