January 20, 2017
Feature

Using Sunlight to Activate the Flow of Electrical Current in a New Material

Modifying the composition of magnetite to enable it to convert sunlight into electrical current

Chambers_Photon

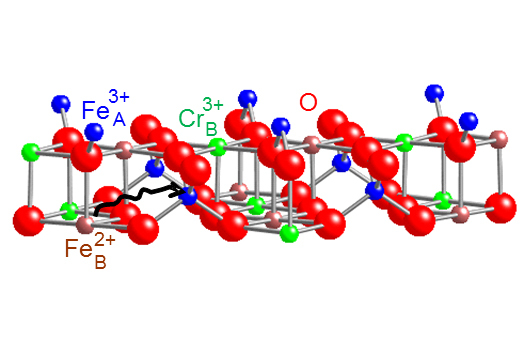

Structural diagram showing electron hopping from an Fe2+ ion at an octahedral (B) site to an Fe3+ ion at a tetrahedral (A) site

Mined to make the first compass needles, the mineral magnetite is also made by migratory birds and other animals to allow them to sense north and south and thus navigate in cloudy or dark atmospheric conditions or under water. A team of scientists has compositionally modified magnetite to capture visible sunlight and convert this light energy into electrical current. This current may be useful to drive the decomposition of water into hydrogen and oxygen. The team generated this material by replacing one third of the iron atoms with chromium atoms.

The team is from Pacific Northwest National Laboratory (PNNL) and includes researchers from EMSL, the Environmental Molecular Sciences Laboratory, a DOE Office of Science user facility, and Argonne National Laboratory.

Why It Matters: Generating materials that can harness the power of the sun to make a combustible fuel such as hydrogen, which would have no carbon footprint, represents an extremely attractive pathway to new clean energy sources. Without alternatives to fossil fuel, we are committed to steadily increasing the concentration of carbon dioxide in the atmosphere and the oceans, with the attendant deleterious effects on greenhouse gas accumulation in the atmosphere and ocean acidification.

Methods: By taking advantage of the compositional precision, purity, and low defect densities found in oxide films prepared by molecular beam epitaxy, the team showed that an unusual semiconducting phase, which is ferrimagnetic well above room temperature and absorbs light in the visible portion of the solar electromagnetic spectrum, can be stabilized on magnesium oxide (MgO(001)) substrates.

This phase results when precisely one third of the iron (Fe) in magnetite (Fe3O4) is replaced with chromium (Cr). The investigation revealed that chromium ions, Cr3+, substitute for iron exclusively at octahedral sites in the spinel lattice, occupying half of these sites. As a result, the charge transport mechanism involves electron hopping between iron cations at octahedral and tetrahedral sites in the lattice.

What's Next? Having shown that chemically modified magnetite (Fe2CrO4) meets the basic criteria required for an air stable, visible light photocatalyst, the investigators plan to carry out experiments in which they will transfer freshly grown Fe2CrO4 surfaces to a photoelectrochemical cell under a dry nitrogen atmosphere to avoid picking up surface carbon contamination. There they will measure the photocatalytic activity for the oxygen evolution and hydrogen evolution reactions, as occur when light energy is successfully used to break water down into useable fuel.

Acknowledgments

Sponsor: U.S. Department of Energy (DOE), Office of ScienceOffice of Basic Energy SciencesDivision of Materials Science and Engineering

User Facilities: EMSL, the Environmental Molecular Sciences Laboratory, a DOE Office of Science user facility at Pacific Northwest National Laboratory; and the Advanced Photon Source, a DOE Office of Science user facility at Argonne National Laboratory

Reference: SA Chambers, TC Kaspar, IH Nayyar, ME McBriarty, SM Heald, DJ Keavney, ME Bowden, and P Sushko. 2017. "Electronic and Optical Properties of a Semiconducting Spinel - Fe2CrO4." Advanced Functional Materials. DOI: 10.1002/adfm.201605040

Download Publication

Key Capabilities

###

About PNNL

Pacific Northwest National Laboratory draws on its distinguishing strengths in chemistry, Earth sciences, biology and data science to advance scientific knowledge and address challenges in sustainable energy and national security. Founded in 1965, PNNL is operated by Battelle for the Department of Energy’s Office of Science, which is the single largest supporter of basic research in the physical sciences in the United States. DOE’s Office of Science is working to address some of the most pressing challenges of our time. For more information, visit https://www.energy.gov/science/. For more information on PNNL, visit PNNL's News Center. Follow us on Twitter, Facebook, LinkedIn and Instagram.

Published: January 20, 2017

Research Team

Scott Chambers, Tim Droubay, Tiffany Kaspar, Iffat Nayyar, Martin McBriarty, Peter Sushko, and Mark Bowden, Pacific Northwest National Laboratory
Steve Heald and Dave Keavney, Argonne National Laboratory
