The Atmospheric Component of DOE’s New Earth System Model Evolves to Explore Emerging Questions

Improved physics, chemistry, and resolution enable more realistic simulations of complex environmental processes

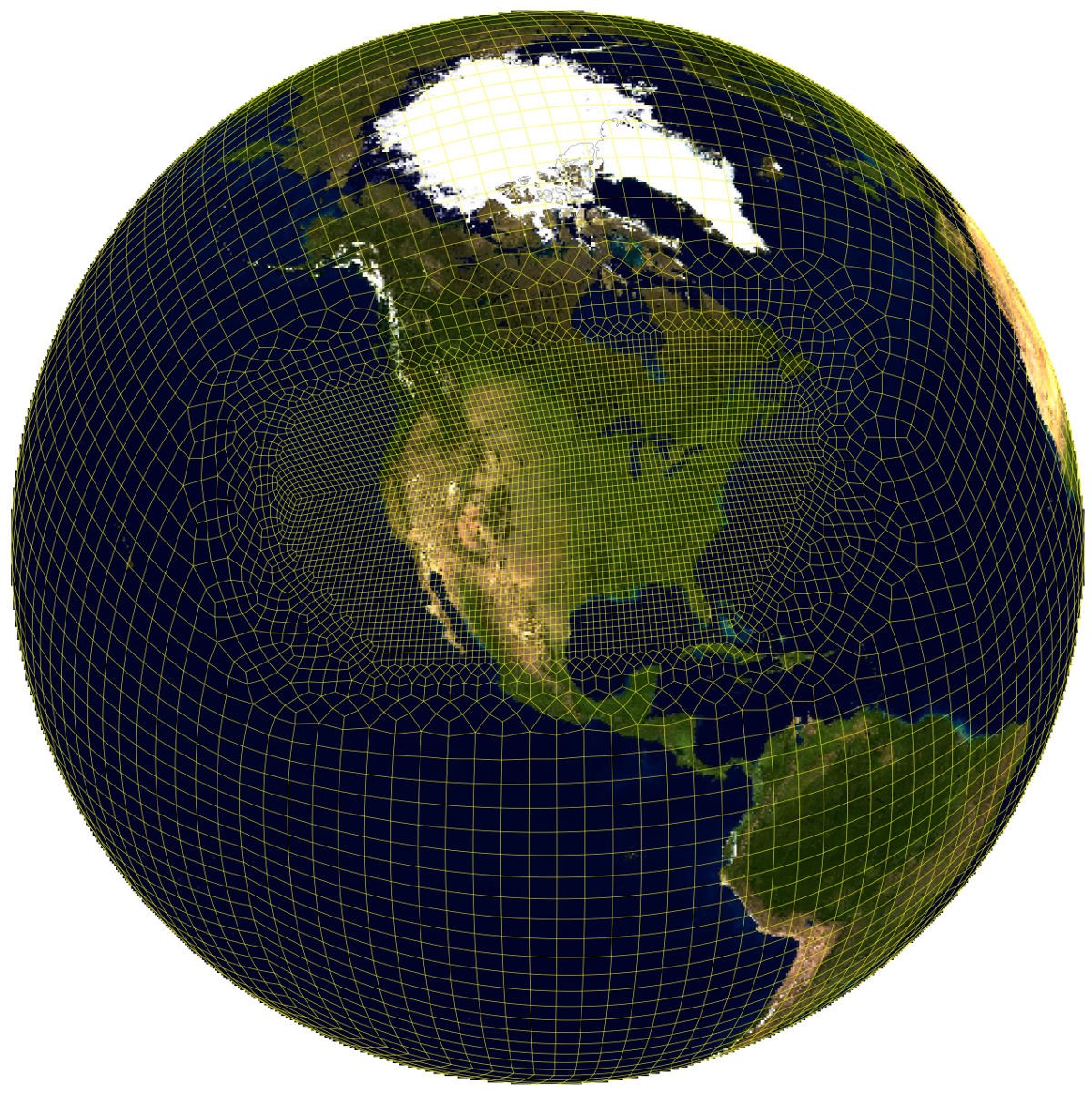

schematic of a globe

EAMv1’s regionally refined grid capability lets researchers use a higher-resolution grid over a region of interest, balancing computational cost and model fidelity.

Image credit: Rasch et al. in JAMES, CC BY-NC-ND 4.0

The Science

The Energy Exascale Earth System Model (E3SM) project addresses environmental change in three research areas: the water cycle, sea level rise, and biogeochemical cycle. The project’s atmospheric component, the E3SM Atmosphere Model (EAM), is designed to help answer challenging science questions involving the atmosphere. A study led by researchers at the U.S. Department of Energy’s Pacific Northwest National Laboratory provides an overview of the model and the science behind it, highlighting its evolution since its beginnings as the Community Atmosphere Model. EAM’s performance, resolution, and representation of physical processes (primarily cloud and particle formulations) have all significantly evolved. The model top now reaches higher into the upper atmosphere, and vertical resolution has more than doubled. Researchers have added improved treatments for ozone, snow, and ice, and stronger connections to biogeochemistry.

The Impact

Tests comparing EAM with its predecessors showed that EAM is generally more realistic, providing the foundation for opportunities for further improvements in the future and advancing earth system science. For example, EAM’s new higher-resolution configuration should be better able to account for features in the water cycle that were challenges for previous model versions, like hurricanes and cyclones. Higher resolution also helps capture finer-scale phenomena like atmospheric effects of local changes in land use. The model can help to better understand past, present, and future changes in Earth's behavior as the system responds to pollution, greenhouse gases, and land and water use changes. By design, it is also well-suited for exploring how the atmosphere interacts with other components of the Earth system, like oceans, land, and biology.


A new version of the EAM has been released to the community. The study provides an overview of the model and the science behind it, describing advances made to address E3SM science challenges, including:

  • The model top now extends to 60 kilometers, and vertical resolution was increased from 30 to 72 layers. A new high-horizontal-resolution configuration uses a 25-kilometer grid; the low-resolution configuration is 100 km. Researchers can choose to use the high-resolution configuration selectively over a region of interest (a regionally refined grid capability).
  • EAM supports increased variability in the upper atmosphere and can predict ozone with a simple photochemistry. Treatments of turbulence, aerosols, cloud microphysics, convection and precipitation processes, and chemistry have all evolved over prior models.
  • Satellite- and ground-based radar and lidar simulators were introduced to make it easier to compare cloud and atmospheric particle simulations with real-world data.

There are many opportunities to improve the model and use it to better understand the Earth system. The EAM team invites the research community to use the new tool and participate in the project.

PNNL Contacts

Ruby Leung, Pacific Northwest National Laboratory, ruby.leung@pnnl.gov

Philip Rasch, Pacific Northwest National Laboratory, Philip.Rasch@pnnl.gov


This material is based upon work supported by the U.S. Department of Energy (DOE) Office of Science. This research was supported as part of the Energy Exascale Earth System Model (E3SM) project (doi:10.11578/E3SM/ dc.20180418.36), funded by the U.S. Department of Energy, Office of Science, Office of Biological and Environmental Research (BER). The E3SM model code and input data are available at https://e3sm.org. This research used resources of the National Energy Research Scientific Computing Center (NERSC), a U.S. Department of Energy Office of Science User Facility; the Argonne Leadership Computing Facility at Argonne National Laboratory, which is supported by the Office of Science of the U.S. Department of Energy;  the Oak Ridge Leadership Computing Facility at the Oak Ridge National Laboratory, which is supported by the Office of Science of the U.S. Department of Energy; a highperformance computing cluster provided by the BER Earth System Modeling program and operated by the Laboratory Computing Resource Center at Argonne National Laboratory; and the Pacific Northwest National Laboratory Research Computing program.

Published: July 29, 2020

Rasch, P. J., S. Xie, P.-L. Ma, W. Lin, H. Wang, Q. Tang, S. M. Burrows, et al. “An Overview of the Atmospheric Component of the Energy Exascale Earth System Model.” Journal of Advances in Modeling Earth Systems 11, (2019).

DOI: 10.1029/2019MS001629
