## Training Day

PNNL team explores how training neural networks can improve modeling of physical systems

At the Deep Learning for Physical Sciences Workshop as part of the 31st Conference on Neural Information Processing Systems (NIPS) in Long Beach, Calif., Pacific Northwest National Laboratory scientists from the Computational Mathematics and National Security Data Science groups showcased their work solving ordinary differential equations with unknown rate functions using neural networks. Their model, which combines machine learning with physics-based models, takes advantage of neural networks’ ability to approximate, or ‘learn,’ unknown functions via training and creates a simple, scalable, and effective solver implemented in Google’s open-source TensorFlow^{™} code.

**The Science**

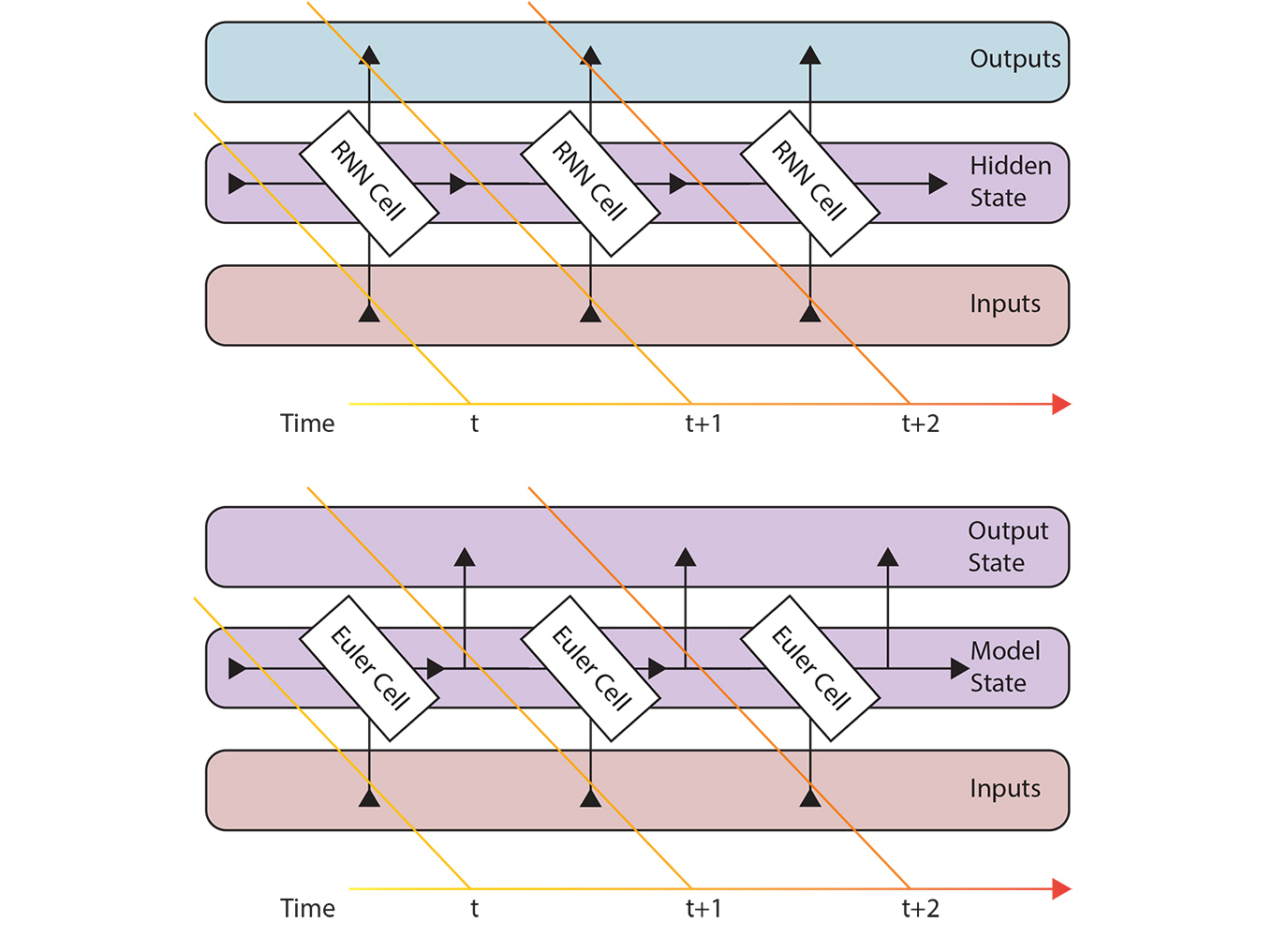

The PNNL team’s approach leverages the fact that differential-equation-based physical models and recurrent neural networks, while conceptually quite different, are formally dynamical systems of the same type. Removing the conceptual barrier between these approaches allows mathematical tools developed in each domain to be applied to the other.

The method is useful for studying physical systems when the system physics is partially known. For example, the conservation laws are known, but the relationships between environmental conditions and particular physical parameters, such as mixing rates, are not quantitatively understood. This approach is applicable even with missing or incomplete training data, such as when some physical state parameters are impractical or too expensive to measure with sufficient frequency.

“To a problem owner, PNNL might be someone to partner with if you have some modeling problem where measuring frequency is a challenge or a physical parameter is difficult to model,” said **Tobias Hagge**, a scientist with the Discrete Mathematics team and the paper’s primary author.

**The Impact**

The approach characterizes dynamical systems in physical sciences where fast, accurate measurements are a challenge. Adapting the neural network architecture of Google’s TensorFlow package provides scalability and GPU-processing capabilities for dynamical system modeling with little to no work on the user’s part. The architecture benefits the neural networking community by providing examples of very deep neural networks that can be formally analyzed because of their relatively simple structure. Finally, treatment of recurrent neural networks and differential equations in the same framework provides opportunities for cross-fertilization between the partial differential equation and neural network communities.

**Summary**

To begin, the team sought scalable solutions to the problem of training neural networks to estimate unknown functions in ordinary differential equations, casting it as a recurrent neural network training problem. Then, they extended the recurrent neural network architecture of Google’s TensorFlow, an open source software library designed for scalable neural network processing, to solve problems of this type. Their approach afforded training neural networks for an unknown function using long time-series training sets with missing data.

The Deep Learning for Physical Sciences Workshop’s aim was to unite members of the machine/deep learning and physical sciences communities to provide new approaches for solving physical science problems. Attendees focused on research questions, practical implementation challenges, performance/scaling, and unique aspects of processing and analyzing scientific datasets. The workshop was held on December 08, 2017.

**Funding **

This research was supported by PNNL’s Laboratory Directed Research and Development (LDRD) as part of the Deep Learning for Scientific Discovery Agile Initiative.

**Publication**

Hagge T, P Stinis, E Yeung, and AM Tartakovsky. 2017. “Solving differential equations with unknown constitutive relations as recurrent neural networks.” Presented at Deep Learning for Physical Sciences Workshop, December 08, 2017, Long Beach, California. Available online at: https://dl4physicalsciences.github.io/files/nips_dlps_2017_6.pdf.

### Download Publication

## Key Capabilities

*
Published: January 29, 2018*
