Enhanced Protein Analysis Could Help Early Disease Detection

Sensitivity substantially increased with deep-dive selected reaction monitoring

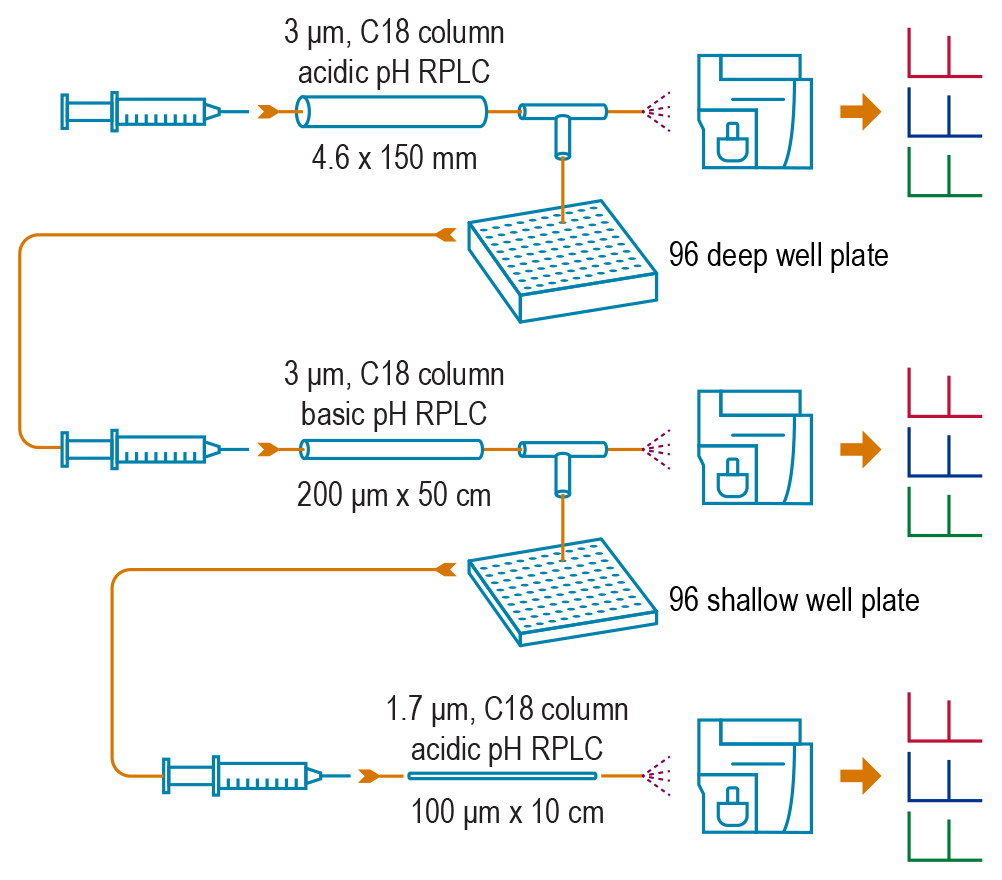

PNNL’s deep-dive SRM method offers a new way to prepare and analyze blood samples, and makes it possible to detect proteins that exist in very low concentrations – as little as 10 picograms per milliliter of a blood sample. The method has a three-step process: 1) Cut the initial sample into 96 fractions and isolate the fraction with the protein of interest, 2) Separate just that fraction into another 96 fractions and again isolate the fraction containing the protein of interest, and 3) Inject the resulting enriched sample into a mass spectrometer to analyze the proteins present. Enlarge Image.

People could start receiving life-saving treatment for cancer and other diseases much earlier with the help of a new method to analyze blood proteins.

A paper by researchers at Pacific Northwest National Laboratory describes a new way to prepare and analyze blood samples that significantly improves researchers' ability to detect proteins that exist in very low concentrations - as little as 10 picograms per milliliter of blood. Such tiny, hard-to-detect concentrations are common with disease-indicating proteins, which are also called biomarkers.

Many researchers identify proteins by using antibodies, Y-shaped proteins that grab onto proteins they're specifically designed to target. But many proteins either don't have matching antibodies or the antibodies they do have aren't good enough to find proteins when few of them are present.

Researchers have long used antibodies this way, but mass spectrometry provides an attractive alternative that is more effective at identifying proteins. To analyze a given protein in blood or other biological samples, researchers use a mass spectrometry approach called selected reaction monitoring, also known as SRM. SRM specifically looks for unique peptides that indicate the presence of a targeted protein.

In 2012, PNNL scientists improved upon standard SRM when they developed a new method called PRISM-SRM, which separates a sample into 96 fractions and determines which of those fractions contains targeted proteins. This enables researchers to run an enriched sample with more targeted proteins through the mass spectrometer. As a result, it can detect proteins that exist in concentrations between 1 nanogram and 100 picograms per milliliter in blood. The 100 picogram-level of sensitivity occurs when common proteins that aren't related to disease are removed through a process called depletion, while 1 nanogram-level sensitivity occurs when common proteins aren't depleted.

But they still wanted to detect proteins that are present in even smaller amounts. To run a sample with even more of the desired proteins through a mass spectrometer, a team of PNNL researchers led by Tao Liu created a new process that starts with larger sample quantities upfront. After cutting the initial sample into 96 fractions, the scientists isolated the fraction with the targeted protein similar to as they had done with PRISM. Next, they separated just that fraction into another 96 - and again isolated the fraction containing the protein of interest.

Called deep-dive SRM, this new approach makes it possible to target proteins that are present in the original blood sample in concentrations as little as 10 picograms per milliliter - and without needing antibodies or upfront depletion. That increases this method's sensitivity by about 100,000 times when compared to conventional SRM analysis and by about 100 times when compared to PRISM-SRM.

Deep-dive SRM could be used by researchers to identify disease-indicating proteins in any biological or clinical sample before they become more plentiful - including potentially diagnosing cancer before a tumor is detectable by other means. Such early detection can increase the chances of saving a patient's life.


Sponsors: This work was supported by the National Institutes of Health. It was conducted at EMSL, the Environmental Molecular Sciences Laboratory DOE Office of Science User Facility located at PNNL.

Research Area: Biological Sciences

Research team: Song Nie, Tujin Shi, Thomas L. Fillmore, Athena A. Schepmoes, Heather Brewer, Yuqian Gao, Ehwang Song, Hui Wang, Karin D. Rodland, Wei-Jun Qian, Richard D. Smith and Tao Liu, all of PNNL.

Reference: S Nie, T Shi, TL Fillmore, AA Schepmoes, H Brewer, Y Gao, E Song, H Wang, KD Rodland, W Qian, RD Smith, T Liu, Deep-Dive Targeted Quantification for Ultrasensitive Analysis of Proteins in Nondepleted Human Blood Plasma/Serum and Tissues, Analytical Chemistry, July 20, 2017, DOI: 10.1021/acs.analchem.7b01878.
