February 2017

Tipping Water: Finding the Balance Between Keeping Molecules Whole or Splitting Them on Oxides

Scientists end long-standing controversy about a ubiquitous reaction involved in catalysts, corrosion, and more

Water molecules land on oxide
In a pioneering study, researchers definitively measured the stability of water molecules as they land on an oxide. There is a slight preference to keep water molecules intact. When the water’s do break, it is because surface forces align the molecules long before they hit the surface. Image courtesy Nathan Johnson, Pacific Northwest National Laboratory Enlarge Image.

Water is behind creating certain biofuels, sequestering carbon, and forming corrosive rust. If and how water (H2O) breaks when it hits a metal oxide surface, such as a catalyst or a pipe, matters. In a pioneering study, scientists at Pacific Northwest National Laboratory (PNNL), led by Dr. Zdenek Dohnálek and Dr. Roger Rousseau, definitively measured the stability of adsorbed water compared to the hydroxyl (-OH) fragments. They showed that there is a slight preference to keep water molecules intact. The research team showed that when they do break, it is because surface forces align water molecules in a specific way, long before they hit the surface and dissociate.

Why It Matters: For decades, scientists studied the reactions between water and oxides. They obtained substantial amounts of data; however, it did not definitively resolve water's stability, or how much energy is needed to make the water molecules fall apart. The PNNL team ended the controversy by precisely measuring stability of water and its fragments; they found that molecular water is only 0.035 eV more stable than its dissociated counterparts (hydroxyl groups). Supplying the definitive answer for the scientific community will benefit those working to efficiently and effectively improve the catalysts involved in producing fuels and chemicals.

"The approach lets us look at how bonds break in catalysis," said Dohnálek, who led the experimental research. "However, it applies much more broadly. Any dissociative process that has an energy barrier will benefit from this study."

Methods: Directly measuring the amount of energy needed to split bonds inside a water molecule when it hits an oxide surface was a major challenge. The team at PNNL spent several years getting the exact answer. "The problem wasn't that there wasn't enough data," said Rousseau. "Everyone had tons of answers. They just weren't what we needed."

To determine water's stability on titanium dioxide, a prototypical surface, experts in surface science and chemical theory came together. Because conventional instruments couldn't measure water's stability, the team first designed an instrument able to measure the energy and see the collisions. They combined a supersonic molecular beam with scanning tunneling microscopy and froze the molecular fragments by working at low substrate temperatures. It allowed the scientists to distinguish the molecules from the fragments.

Instrument used to study water stability
Using powerful instruments, researchers resolved a fundamental question about water’s stability, critical for many catalytic reactions for producing fuels and chemicals.

By iterating between experiments and simulations, the team made numerous discoveries about the way water interacts with the oxide. For example, they found that the oxide surface influences the water molecules from relatively far away, which means a few molecular lengths in this case. While such "steering" of the molecules is seen on metal surfaces, it occurs at much shorter distances.

"When I saw the data, it hit me that this can only be explained by looking at how the water molecules approach the surface," said Dr. Vanda Glezakou, who suggested this analysis.

In the end, they determined that when the water fragmented to form two hydroxyl groups, the amount of energy needed to activate the bond that splits off the proton is relatively small, just 0.36 eV and the amount of energy to put the water back together is only 0.035 eV smaller, showing that water is only tiny bit more stable.

The team's technique can provide answers on other systems where bond activation is crucial, including in biomass production and carbon storage.

What's Next? The PNNL team is applying the approach to catalytic problems as part of the Institute for Integrated Catalysis. Specifically, they are studying how molecules other than water break on surfaces. They are examining the different intermediate products formed. Further, they are seeing how heat influences dissociation in different reactions.

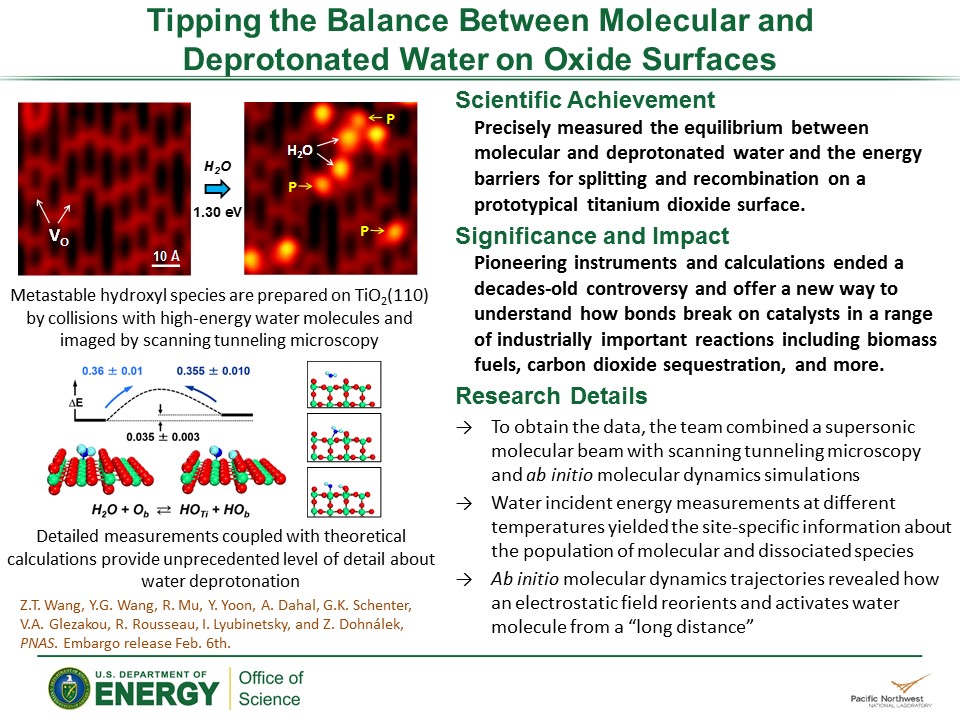

PowerPoint slide summarizing Tipping Water: Finding the Balance Between Keeping Molecules Whole or Splitting Them on Oxides
Cleared slide summarizing research conducted at Pacific Northwest National Laboratory. Download PowerPoint slide.


Sponsor: U.S. Department of Energy (DOE), Office of Science, Office of Basic Energy Sciences, Division of Chemical Sciences, Geosciences, and Biosciences

User Facility: EMSL, a national scientific user facility sponsored by the DOE's Office of Biological and Environmental Research and located at Pacific Northwest National Laboratory

Research Team: Zhi-Tao Wang, Yang-Gang Wang, Rentao Mu, Yeohoon Yoon, Arjun Dahal, Gregory K. Schenter, Vassiliki-Alexandra Glezakou, Roger Rousseau, Igor Lyubinetsky (now with Oregon State University), and Zdenek Dohnálek, Pacific Northwest National Laboratory

Reference: Wang ZT, YG Wang, R Mu, Y Yoon, A Dahal, GK Schenter, VA Glezakou, R Rousseau, I Lyubinetsky, and Z Dohnálek. 2017. "Probing Equilibrium of Molecular and Deprotonated Water on TiO2(110)." Proceedings of the National Academy of Sciences USA. Early Edition. DOI: 10.1073/pnas.1613756114

Page 153 of 1002

Science at PNNL

Core Research Areas

User Facilities

Centers & Institutes

Additional Information

Research Highlights Home


Print this page (?)

YouTube Facebook Flickr TwitThis LinkedIn

In Short...

In one sentence: Scientists at Pacific Northwest National Laboratory definitively resolved long-standing controversy and showed that molecular water is more stable on titania surface than the hydroxyl fragments.

In 100 characters: Ending the debate, scientists definitively measured the stability of water molecules on an oxide
