March 2015

Putting Batteries on Stage Spotlights Performance at the Nanoscale

New device lets scientists take images of lithium battery as it works and recharges

add alt text

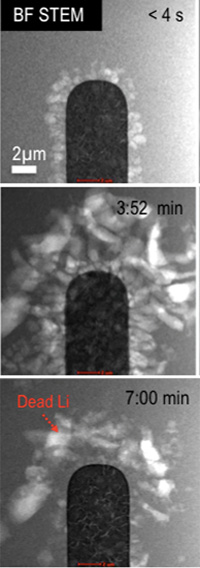

Lithium deposited on the platinum anode at the beginning (top), during (middle) and end (bottom) of the second cycle. Residual “dead lithium” can be seen on and around the anode.

Results: Used in everything from electric vehicles to laptop computers, the lithium battery is ubiquitous, but it is not well understood at the atomic scale. To see what happens on the nanoscale, scientists at DOE's Joint Center for Energy Storage Research (JCESR) designed and implemented a small device, known as an operando electrochemical stage. Using this stage inside a state-of-the-art aberration-corrected transmission electron microscope they can take nanoscale-resolution pictures of lithium ions as they are deposited on or dissolve off of an electrode while the battery runs.

Why It Matters: With the new stage, scientists can directly image changes as they occur. The new images allow precise measurements and descriptions of what happens inside the battery. This information is vital to control performance- and safety-limiting processes. Now, scientists can rapidly visualize and test new pairings of electrodes and electrolytes (see Battery 101). The new stage will help quickly sort through options for longer lasting, safer batteries.

Methods: Moving beyond the current industry-standard lithium-ion battery has been difficult. In lithium-air and other designs, interactions at the electrode-electrolyte interfaces affect the battery's performance and safety. To understand the reactions, scientists at the Pacific Northwest National Laboratory, as part of JCESR, created an operando electrochemical stage. Using it in an aberration-corrected scanning transmission electron microscope, scientists can now chemically image the interface between the platinum anode and the electrolyte during the battery operation.

The imaging method highlights solid lithium metal, uniquely identifying it from the components that make up the protective solid-electrolyte interphase layer. Using these images and standard electrochemical data, scientists can quantify, at the nanoscale, the amount of lithium that ends up irreversibly deposited after each charge/discharge cycle. This means they can view dendrites -- the microscopic thorns that cause batteries to fail -- as they form.

The technique also shows the growth of the solid-electrolyte interphase layer, which wraps around and protects the anode. The layer is formed as a result of the electrolyte breaking down. In their studies, the team found that extended battery cycling leads to lithium growing beneath the layer -- the genesis of the dendrites that have implications for battery safety and performance.

What's Next? This new imaging tool opens up possibilities to rapidly visualize and test electrode/electrolyte pairings for new battery systems. These systems could allow electric cars to travel great distances between charges. Also, one day, such systems could store energy from wind and solar stations, making the intermittent energy available when needed.


Sponsors: This work was primarily supported by Joint Center for Energy Storage Research (JCESR), an Energy Innovation Hub funded by the U.S. Department of Energy, Office of Science, Basic Energy Sciences. The development of the operando stage was supported by the Chemical Imaging Initiative, a Laboratory Directed Research and Development Program at Pacific Northwest National Laboratory (PNNL). The development of the multitarget tracking algorithm is supported by the National Science Foundation

User Facility: A portion of the research was performed using the Environmental Molecular Sciences Laboratory (EMSL), a national scientific user facility sponsored by the U.S. Department of Energy's Office of Biological and Environmental Research and located at PNNL.

Research Team: B Layla Mehdi, Jiangfeng Qian, Eduard Nasybulin, Hardeep S Mehta, Wesley A Henderson, Wu Xu, Chongmin Wang, James E Evans, Jun Liu, Jiguang Zhang, Karl T Mueller, and Nigel D Browning, PNNL; Chiwoo Park, Florida State University; David A Welch, Roland Faller, University of California, Davis

Reference: Mehdi BL, J Qian, E Nasybulin, C Park, DA Welch, R Faller, H Mehta, WA Henderson, W Xu, CM Wang, JE Evans, J Liu, JG Zhang, KT Mueller, and ND Browning. 2015. "Observation and Quantification of Nanoscale Processes in Lithium Batteries by Operando Electrochemical (S)TEM." Nano Letters 15(3):2168-2173. DOI: 10.1021/acs.nanolett.5b00175

Page 326 of 1002

Science at PNNL

Core Research Areas

User Facilities

Centers & Institutes

Additional Information

Research Highlights Home


Print this page (?)

YouTube Facebook Flickr TwitThis LinkedIn

Battery 101

Most of the rechargeable batteries used today are lithium-ion batteries, which have two electrodes: one that's positively charged and contains lithium and another, negative one that's typically made of graphite. Electricity is generated when electrons flow through a wire that connects the two. To control the electrons, positively charged lithium atoms shuffle from one electrode to the other through another path: the electrolyte solution in which the electrodes sit. But graphite has a low energy storage capacity, limiting the amount of energy a lithium-ion battery can provide smart phones and electric vehicles.

When lithium-based rechargeable batteries were first developed in the 1970s, researchers used lithium for the negative electrode, which is also known as an anode. Lithium was chosen because it has ten times more energy storage capacity than graphite. Problem was, the lithium-carrying electrolyte reacted with the lithium anode. This caused microscopic lithium dendrites to grow and led the early batteries to fail.

Many have tweaked rechargeable batteries over the years in an attempt to resolve the dendrite problem. In the early 1990s, researchers switched to other materials such as graphite for the anode. More recently, scientists have also coated the anode with a protective layer, while others have created electrolyte additives. Some solutions eliminated dendrites, but also resulted in impractical batteries with little power. Other methods only slowed, but didn't stop, the fiber's growth. - Sidebar written by Franny White
